Industrial PC

UNICO uBOX CORE LIGHT

Planned Lifecycle Through Q3’2033

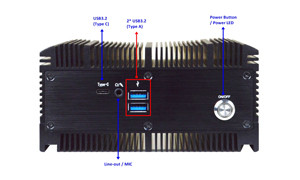

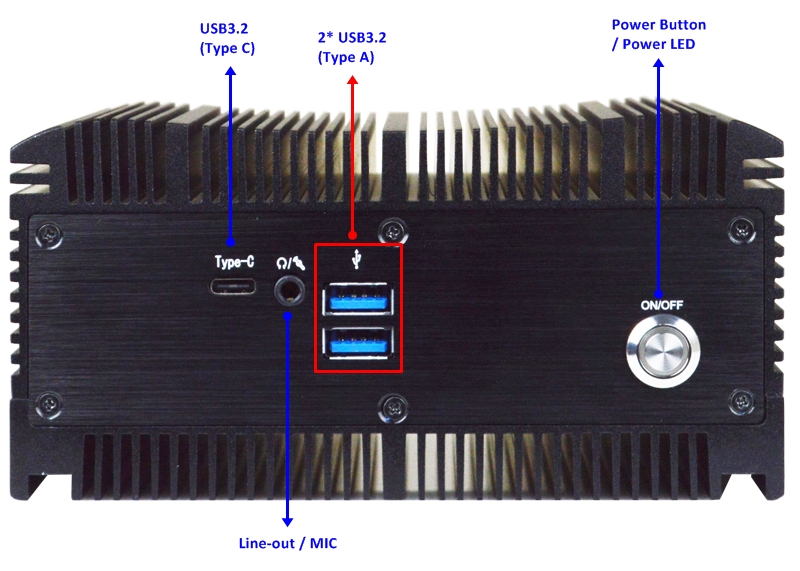

UNICO uBOX CORE LIGHT

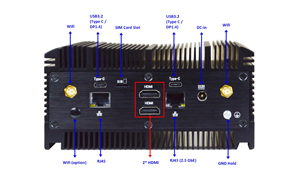

Versione CL-1135G7-2L

  • CPU: Intel® Tiger Lake-UP3 i5-1135G7

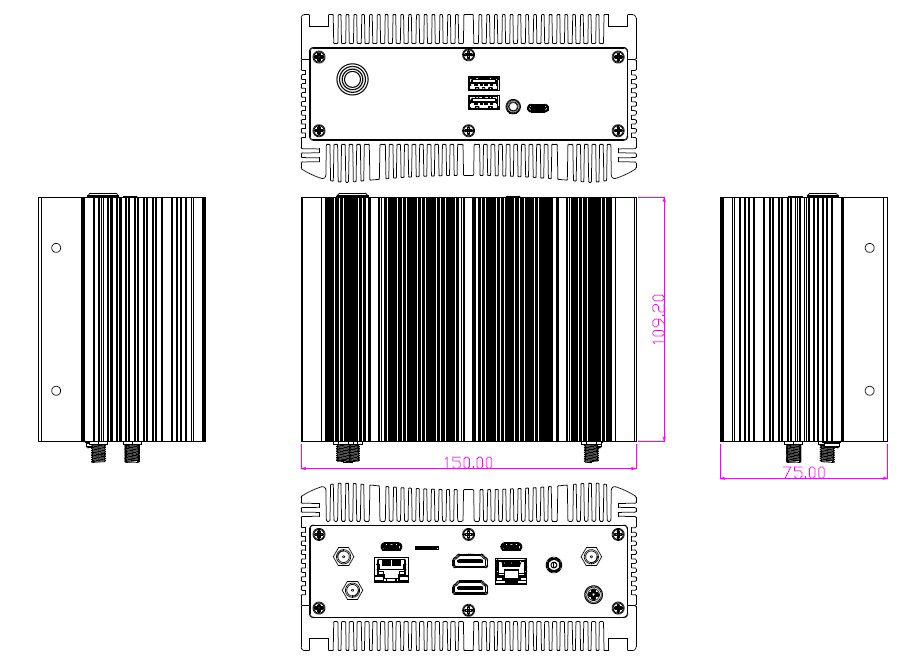

  • Dimensioni: 150mm (W) x 110mm (L) x 75mm (H) – FANLESS

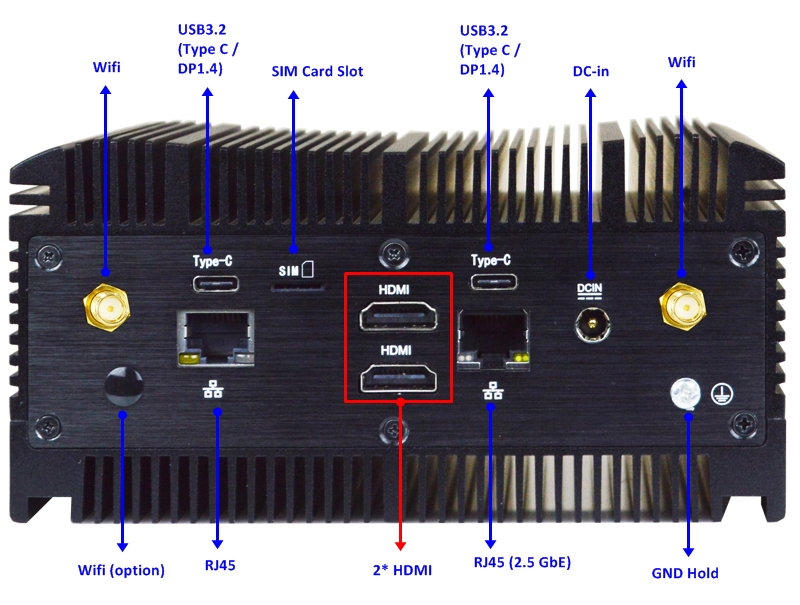

  • LAN: 1x Intel i219-LM GbE, 1x Intel i225-V 2.5GbE
  • RAM: 2x DDR4-3200 Dual Channel SO-DIMM up to 64GB
  • Video: 2x HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
  • Storage: 1x M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) support NVMe, 1x 2.5” SATAIII Device (support 2.5” HDD with a height ≤ 10mm)
  • Operating Temperature: -10° ~ 50°C
  • Opzioni: WIFI
  • OS Support: Windows 10, Windows 10 iot, Windows 11, LINUX, VMWARE ESXI 7

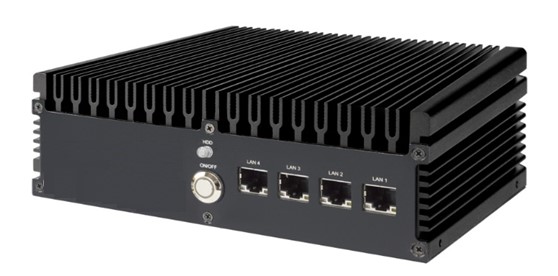

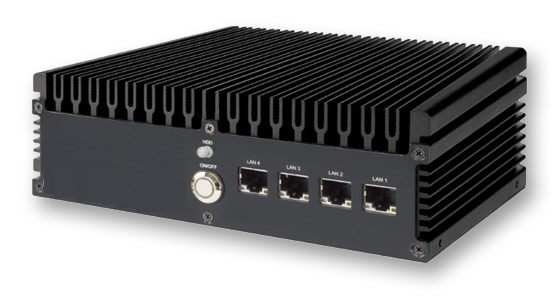

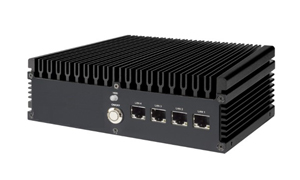

Versione CL-1135G7-6L

  • CPU: Intel® Tiger Lake-UP3 i5-1135G7

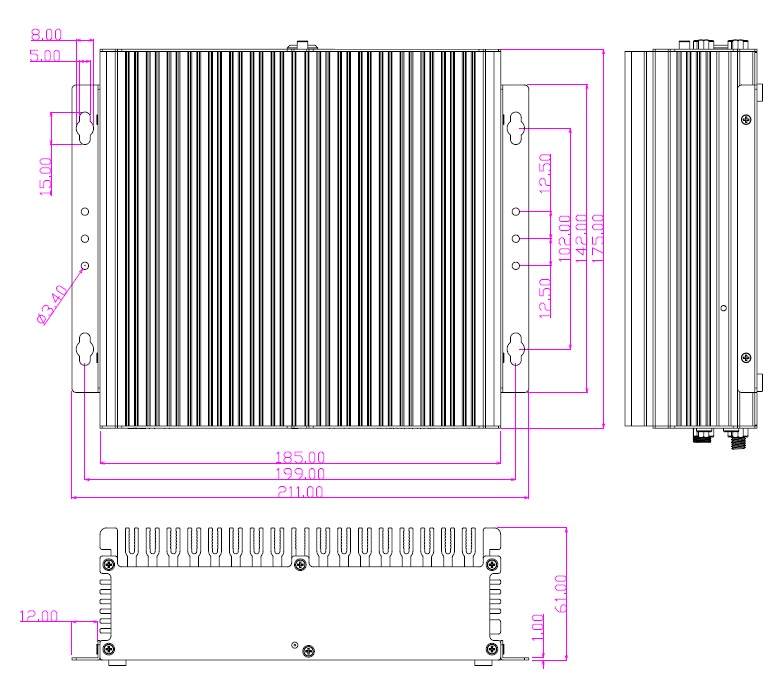

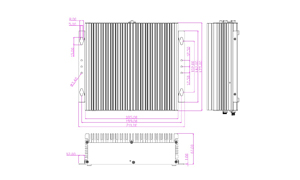

  • Dimensioni: 185mm (W) x 175mm (L) x 60mm (H) – FANLESS

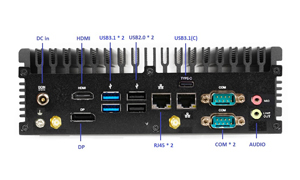

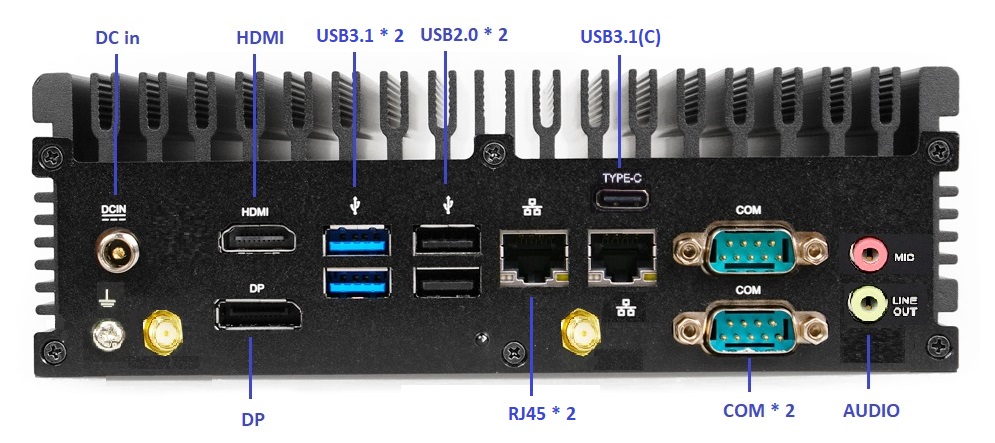

  • LAN: 1x Intel i219-LM GbE, 1x Intel i225-V 2.5GbE, 4x Intel® i211AT
  • RAM: 2x DDR4-3200 Dual Channel SO-DIMM up to 64GB
  • Video: 1x HDMI 2.0 (Max Resolution: 4096×2160@60Hz), 1x DP (Max Resolution: 4096×2304@60Hz)
  • Storage: 1x M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) support NVMe, 1x 2.5” SATAIII Device (support 2.5” HDD with a height ≤ 10mm)
  • Operating Temperature: -10° ~ 50°C
  • Opzioni: WIFI
  • OS Support: Windows 10, Windows 10 iot, Windows 11, LINUX, VMWARE ESXI 7

ATTENZIONE: Dettagli e caratteristiche dei prodotti sono soggetti a modifiche senza preavviso e sono da ritenersi puramente informative. Le immagini sono fornite al solo scopo illustrativo e non costituiscono elemento contrattuale.
